Outdoor Dual-Lens Camera
Data Storage Options
Cloud storage, Micro SD card, Memory card, SD Card
Appearance
Dome camera, Bullet camera, PTZ camera
Function Points
Two-way audio, PTZ (Pan-Tilt-Zoom), Abnormal sound detection, Alarm input/output, RESET, Built-in microphone, Night vision, Waterproof, Wide-angle, Thermal imaging, One-way audio, Built-in siren, Vandal-proof
Other Features
Human motion tracking, Face detection, Night vision, Motion detection, Sound detection, Waterproof, Built-in siren, PTZ (Pan-Tilt-Zoom), Two-way audio, Face recognition, Low power consumption
Sensor
CMOS image sensor
Warranty Service
1 year
Compression Format
H.265
Customization Support
Online technical support, Custom logo, Software re-engineering, OEM, ODM
Lens Configuration
Dual lenses
Place of Origin
China
Product Name
Outdoor Dual-Lens Camera
Packaging & Shipping Information
Individual packaging size: 10×10×20 cm

System Structure & Specifications
System Structure
Embedded Linux System, ARM Chip Architecture
Chip
KM01D
Sensor
1/2.9 inch MIS2008 * 2
Resolution
4MP + 4MP = 8MP
(Note: "MP" stands for "megapixels", a standard unit for camera resolution in the electronics industry.)
Lens
4 mm
Field of View (FOV)
2*80°

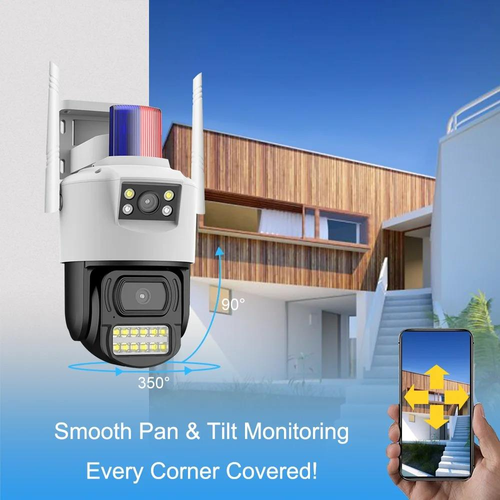

PTZ (Pan-Tilt-Zoom)
Horizontal: 355°, Vertical: 90°
Video Compression Standard
H.264
Video Format
MP4
(Note: The original term "朋友" is likely a typo. Based on common camera specifications, "MP4" (a universal video format) is used here for accuracy. If there is a specific format intended, please adjust accordingly.)
Minimum Illumination
0.01 Lux @ (F2.0, VGC On), 0 Lux (with IR)
(Note: The original "O。" is corrected to "0 Lux" (zero lux) to align with illumination parameter conventions; "VGC" refers to "Video Gain Control", a common camera function.)
Electronic Shutter
Auto
Backlight Compensation
Supported
Noise Reduction
2D & 3D
Night Vision
Auto IR-Cut Filter
IR Range: Approx. 8 ~ 10 meters (varies by environment)
White LED: Remotely controllable via app with 3 modes: ① On ② Off ③ Auto
(In Auto mode, the IR lamp turns on after the IR-Cut Filter automatically activates night vision. It can intelligently detect human bodies and switch the white light on/off accordingly.)
Network Connection
Wireless Network, Hotspot, RJ45 Ethernet Port
(Note: "RJ45 Ethernet Port" is the standard term for wired network interfaces in electronic devices.)

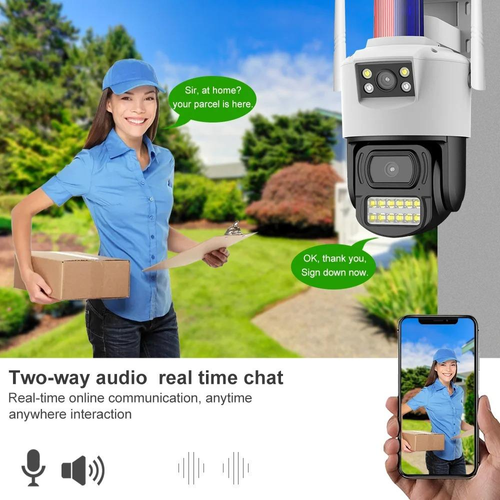

Audio
Built-in microphone and speaker (supports two-way audio and real-time transmission)
Audio Compression Standard: ADPCM
Adaptive Bitrate
Network Protocols
TCP/IP, DDNS, DHCP
(All are industry-standard network protocol abbreviations, retained in their original form.)

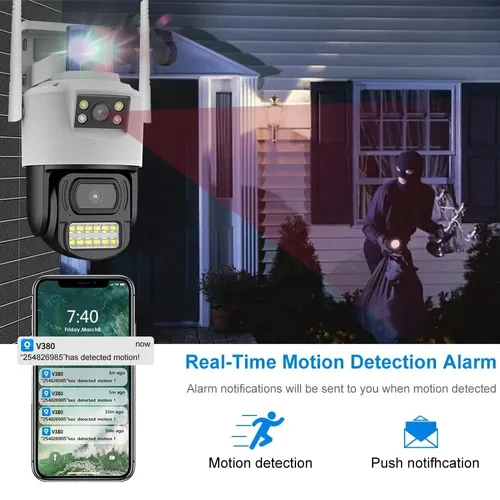

Alarms
Motion Detection, Voice Alarm, and Image Push
AI Human Motion Detection
Storage
TF Card (Micro SD Card, max. 128GB)
Cloud Storage
(Note: "TF Card" is the common name for "Micro SD Card", with the latter added for clarity in international contexts
